如何让一个网络同时分类一张图像的两个独立标签？

一般我们会构建一个输出网络，每一个label作为属性输出；或者构建两个分支网络，针对不同label输出。

1、数据集组成（fashion）

本人的数据集有12类，共计5547张图片。其中有6类是从网上下载获取的，剩余的6类是自己在网上爬虫分类整理得到的。

该数据集主要是有两类信息：颜色（黑色、红色、蓝色、白色）和服饰类型（牛仔裤、连衣裙、短袖、鞋子、包包），具体的数据集内容如下：

黑色连衣裙：black_dress（333张）

黑色牛仔裤：black_jeans（344张）

黑色短袖：black_shirt（436张）

黑色鞋子：black_shoe（534张）

蓝色连衣裙：blue_dress（386张）

蓝色牛仔裤：blue_jeans（356张）

蓝色短袖：blue_shirt（369张）

红色连衣裙：red_dress（384张）

红色短袖：red_shirt（332）

红色鞋子：red_shoe（486）

白色包包：white_bag（747）

白色鞋子：white_shoe（840）

2、构建网络（单输出）

2.1、采用类似vgg的网络结构（SimpleNet）

1.
   class SimpleNet(object):
2.
   def __init__(self, input_shape, classes, finalAct="softmax"):
3.
   #default input_shape = (width, height, channel)
4.
   self.input_shape = input_shape
5.
   self.classes = classes
6.
   self.finalAct = finalAct
7.

8.
   #chanDim = inputShape[2]
9.
   chanDim = -1
10.
    if K.image_data_format() == "channels_first":
11.
    chanDim = 1
12.
    self.chanDim = chanDim
13.

14.

15.
    def build_model(self):
16.
    model = Sequential()
17.
    # CONV => RELU => POOL
18.
    model.add(Conv2D(filters=32, kernel_size=(3, 3), strides=(1, 1), padding="same", input_shape=self.input_shape))
19.
    model.add(Activation("relu"))
20.
    model.add(BatchNormalization(axis=self.chanDim))
21.
    model.add(MaxPooling2D(pool_size=(3, 3)))
22.
    model.add(Dropout(0.25))
23.

24.
    # (CONV => RELU) * 2 => POOL
25.
    model.add(Conv2D(64, (3, 3), padding="same"))
26.
    model.add(Activation("relu"))
27.
    model.add(BatchNormalization(axis=self.chanDim))
28.
    model.add(Conv2D(64, (3, 3), padding="same"))
29.
    model.add(Activation("relu"))
30.
    model.add(BatchNormalization(axis=self.chanDim))
31.
    model.add(MaxPooling2D(pool_size=(2, 2)))
32.
    model.add(Dropout(0.25))
33.

34.
    # (CONV => RELU) * 2 => POOL
35.
    model.add(Conv2D(128, (3, 3), padding="same"))
36.
    model.add(Activation("relu"))
37.
    model.add(BatchNormalization(axis=self.chanDim))
38.
    model.add(Conv2D(128, (3, 3), padding="same"))
39.
    model.add(Activation("relu"))
40.
    model.add(BatchNormalization(axis=self.chanDim))
41.
    model.add(MaxPooling2D(pool_size=(2, 2)))
42.
    model.add(Dropout(0.25))
43.

44.
    # (CONV => RELU) * 2 => POOL
45.
    model.add(Conv2D(256, (3, 3), padding="same"))
46.
    model.add(Activation("relu"))
47.
    model.add(BatchNormalization(axis=self.chanDim))
48.
    model.add(Conv2D(256, (3, 3), padding="same"))
49.
    model.add(Activation("relu"))
50.
    model.add(BatchNormalization(axis=self.chanDim))
51.
    model.add(MaxPooling2D(pool_size=(2, 2)))
52.
    model.add(Dropout(0.25))
53.

54.
    # use global average pooling instead of fc layer
55.
    model.add(GlobalAveragePooling2D())
56.
    model.add(Activation("relu"))
57.
    model.add(BatchNormalization())
58.
    model.add(Dropout(0.5))
59.

60.
    # softmax classifier
61.
    model.add(Dense(self.classes))
62.
    model.add(Activation(self.finalAct))
63.
    model.summary()
64.

65.
    return model

说明：该种结构仅能识别上述12类，若是出现了某类其他类型和颜色搭配，如红色包包，则会识别错误。

在多分类中，最常用的就是softmax层。由于标签间是独立的，因此对于一个二分类问题，常用的激活函数是sigmoid函数。

在多标签分类中，大多使用binary_crossentropy损失而不是通常在多类分类中使用的categorical_crossentropy损失函数。

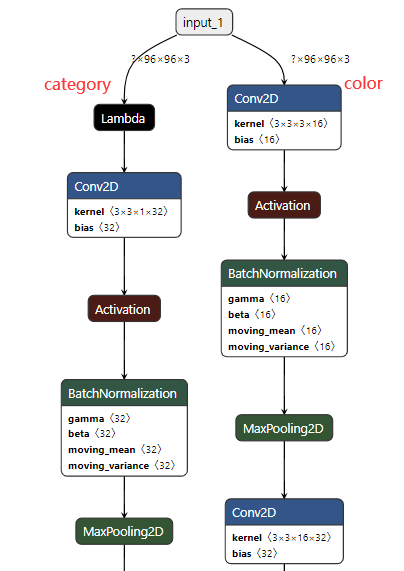

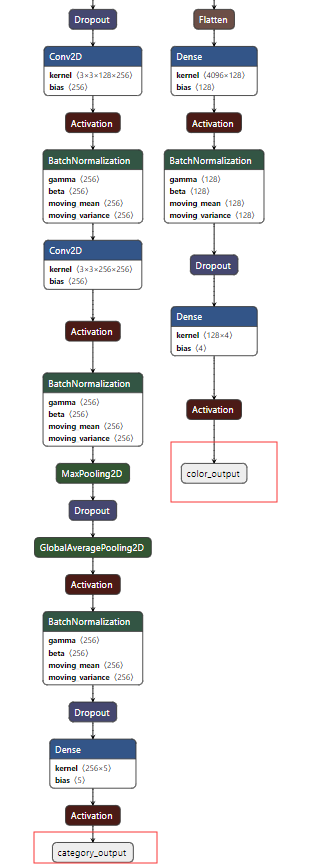

2.2、采用多分枝的网络结构（FashionNet）

该网络结构中一个用于识别类型，一个识别色彩。类型识别的结构可以复杂点，主要是形状识别，因此传入的图片做了灰度化处理；色彩识别比较简单，因此对应的网络结构比较简单。

该结构的好出是可以出数据中没有出现的类型，比如蓝色鞋子、红色包包等，前一个网络结构则无法识别。

1.
   class FashionNet(object):
2.
   def __init__(self, input_shape, category_classes, color_classes, finalAct="softmax"):
3.
   #default input_shape = (width, height, channel)
4.
   self.input_shape = input_shape
5.
   self.category_classes = category_classes
6.
   self.color_classes = color_classes
7.
   self.finalAct = finalAct
8.

9.
   #chanDim = inputShape[2]
10.
    chanDim = -1
11.
    if K.image_data_format() == "channels_first":
12.
    chanDim = 1
13.
    self.chanDim = chanDim
14.

15.
    def build_category_branch(self, inputs):
16.
    # convert 3 channel(rgb) input to gray
17.
    x = Lambda(lambda c: tf.image.rgb_to_grayscale(c))(inputs)
18.

19.
    #Conv->ReLU->BN->Pool
20.
    x = Conv2D(filters=32, kernel_size=(3,3), strides=(1,1), padding='same')(x)
21.
    x = Activation('relu')(x)
22.
    x = BatchNormalization(axis=self.chanDim)(x)
23.
    x = MaxPooling2D(pool_size=(3,3))(x)
24.

25.
    #(CONV => RELU) * 2 => POOL
26.
    x = Conv2D(64, (3, 3), padding="same")(x)
27.
    x = Activation("relu")(x)
28.
    x = BatchNormalization(axis=self.chanDim)(x)
29.
    x = Conv2D(64, (3, 3), padding="same")(x)
30.
    x = Activation("relu")(x)
31.
    x = BatchNormalization(axis=self.chanDim)(x)
32.
    x = MaxPooling2D(pool_size=(2, 2))(x)
33.
    x = Dropout(0.25)(x)
34.

35.
    # (CONV => RELU) * 2 => POOL
36.
    x = Conv2D(128, (3, 3), padding="same")(x)
37.
    x = Activation("relu")(x)
38.
    x = BatchNormalization(axis=self.chanDim)(x)
39.
    x = Conv2D(128, (3, 3), padding="same")(x)
40.
    x = Activation("relu")(x)
41.
    x = BatchNormalization(axis=self.chanDim)(x)
42.
    x = MaxPooling2D(pool_size=(2, 2))(x)
43.
    x = Dropout(0.25)(x)
44.

45.
    # (CONV => RELU) * 2 => POOL
46.
    x = Conv2D(256, (3, 3), padding="same")(x)
47.
    x = Activation("relu")(x)
48.
    x = BatchNormalization(axis=self.chanDim)(x)
49.
    x = Conv2D(256, (3, 3), padding="same")(x)
50.
    x = Activation("relu")(x)
51.
    x = BatchNormalization(axis=self.chanDim)(x)
52.
    x = MaxPooling2D(pool_size=(2, 2))(x)
53.
    x = Dropout(0.25)(x)
54.

55.
    # use global average pooling instead of fc layer
56.
    x = GlobalAveragePooling2D()(x)
57.
    x = Activation("relu")(x)
58.
    x = BatchNormalization()(x)
59.
    x = Dropout(0.5)(x)
60.

61.
    # softmax classifier
62.
    x = Dense(self.category_classes)(x)
63.
    x = Activation(self.finalAct, name='category_output')(x)
64.

65.
    return x
66.

67.
    def build_color_branch(self, inputs):
68.
    #Conv->ReLU->BN->Pool
69.
    x = Conv2D(filters=16, kernel_size=(3,3), strides=(1,1), padding='same')(inputs)
70.
    x = Activation('relu')(x)
71.
    x = BatchNormalization(axis=self.chanDim)(x)
72.
    x = MaxPooling2D(pool_size=(3,3))(x)
73.

74.
    #Conv->ReLU->BN->Pool*2
75.
    x = Conv2D(filters=32, kernel_size=(3,3), strides=(1,1), padding='same')(x)
76.
    x = Activation('relu')(x)
77.
    x = BatchNormalization(axis=self.chanDim)(x)
78.
    x = Conv2D(filters=32, kernel_size=(3,3), strides=(1,1), padding='same')(x)
79.
    x = Activation('relu')(x)
80.
    x = BatchNormalization(axis=self.chanDim)(x)
81.
    x = MaxPooling2D(pool_size=(2,2))(x)
82.
    x = Dropout(0.25)(x)
83.

84.
    #Conv->ReLU->BN->Pool*2
85.
    x = Conv2D(filters=64, kernel_size=(3,3), strides=(1,1), padding='same')(x)
86.
    x = Activation('relu')(x)
87.
    x = BatchNormalization(axis=self.chanDim)(x)
88.
    x = Conv2D(filters=64, kernel_size=(3,3), strides=(1,1), padding='same')(x)
89.
    x = Activation('relu')(x)
90.
    x = BatchNormalization(axis=self.chanDim)(x)
91.
    x = MaxPooling2D(pool_size=(2,2))(x)
92.
    x = Dropout(0.25)(x)
93.

94.
    x = Flatten()(x)
95.
    x = Dense(128)(x)
96.
    x = Activation('relu')(x)
97.
    x = BatchNormalization()(x)
98.
    x = Dropout(0.5)(x)
99.
    x = Dense(self.color_classes)(x)
100.
     x = Activation(self.finalAct, name='color_output')(x)
101.
     return x
102.

103.
     def build_model(self):
104.
     input_shape = self.input_shape
105.
     inputs = Input(shape=input_shape)
106.
     category_branch = self.build_category_branch(inputs)
107.
     color_branch = self.build_color_branch(inputs)
108.

109.
     model = Model(inputs=inputs, outputs=[category_branch, color_branch])
110.
     model.summary()
111.
     return model

3、模型训练

针对两种不同的方式，训练代码中的函数做了如下区分：

1.
   #! -*- coding:utf-8
2.

3.
   # import the necessary packages
4.
   from keras.preprocessing.image import ImageDataGenerator
5.
   from keras.optimizers import Adam
6.
   from keras.preprocessing.image import img_to_array
7.
   from sklearn.preprocessing import MultiLabelBinarizer,LabelBinarizer
8.
   from sklearn.model_selection import train_test_split
9.
   from cnn import SimpleNet
10.
    #from cnn import SmallerInceptionNet
11.
    from cnn import FashionNet
12.
    import matplotlib.pyplot as plt
13.
    from imutils import paths
14.
    import numpy as np
15.
    import argparse
16.
    import random
17.
    import pickle
18.
    import cv2
19.
    import os
20.
    from PIL import Image
21.

22.
    # grab the image paths and randomly shuffle them
23.
    def load_data(data_dir, img_size):
24.
    print("[INFO] loading images...")
25.
    if not os.path.exists(data_dir):
26.
    return None
27.
    imagePaths = sorted(list(paths.list_images(data_dir)))
28.
    random.seed(42)
29.
    random.shuffle(imagePaths)
30.

31.
    datas = []
32.
    labels = []
33.
    for imagePath in imagePaths:
34.
    image = cv2.imread(imagePath, cv2.IMREAD_UNCHANGED)
35.
    if image is None:
36.
    print(imagePath)
37.
    continue
38.
    # convert 8depth to 24 depth
39.
    if len(image.shape)==2:
40.
    with Image.open(imagePath) as img:
41.
    rgb_img = img.convert('RGB')
42.
    image = cv2.cvtColor(np.asarray(rgb_img), cv2.COLOR_RGB2BGR)
43.
    elif len(image.shape)==3:
44.
    if image.shape[2]==4:
45.
    image = cv2.cvtColor(image, cv2.COLOR_BGRA2BGR)
46.
    elif image.shape[2]==1:
47.
    image = cv2.cvtColor(image, cv2.COLOR_GRAY2BGR)
48.

49.
    image = cv2.resize(image, img_size)
50.
    image = img_to_array(image)
51.
    datas.append(image)
52.

53.
    label = imagePath.split(os.path.sep)[-2].split("_")
54.
    labels.append(label)
55.

56.
    # scale the raw pixel intensities to the range [0, 1]
57.
    datas = np.array(datas, dtype="float") / 255.0
58.
    labels = np.array(labels)
59.
    return datas, labels
60.

61.
    def load_data_multilabels(data_dir, img_size):
62.
    print("[INFO] loading images...")
63.
    if not os.path.exists(data_dir):
64.
    return None
65.
    imagePaths = sorted(list(paths.list_images(data_dir)))
66.
    random.seed(42)
67.
    random.shuffle(imagePaths)
68.

69.
    datas = []
70.
    category_labels = []
71.
    color_labels = []
72.
    for imagePath in imagePaths:
73.
    image = cv2.imread(imagePath)
74.
    if image is None:
75.
    print(imagePath)
76.
    continue
77.
    if image.shape[2]==4:
78.
    image = cv2.cvtColor(image, cv2.COLOR_BGRA2BGR)
79.
    image = cv2.resize(image, img_size)
80.
    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
81.
    image = img_to_array(image)
82.
    datas.append(image)
83.

84.
    (color_label, category_label) = imagePath.split(os.path.sep)[-2].split("_")
85.
    category_labels.append(category_label)
86.
    color_labels.append(color_label)
87.

88.
    # scale the raw pixel intensities to the range [0, 1]
89.
    datas = np.array(datas, dtype="float") / 255.0
90.
    category_labels = np.array(category_labels)
91.
    color_labels = np.array(color_labels)
92.
    return datas, category_labels, color_labels
93.

94.
    # binarize the labels using scikit-learn's special multi-label
95.
    def binarize_multilabels_and_save(labels, path):
96.
    mlb = MultiLabelBinarizer()
97.
    labels = mlb.fit_transform(labels)
98.
    print(labels[:6])
99.
    print('labels shape:', labels.shape)
100.
     for (i, label) in enumerate(mlb.classes_):
101.
     print("{}. {}".format(i + 1, label))
102.
     with open(path, "wb") as f:
103.
     f.write(pickle.dumps(mlb))
104.
     return labels, len(mlb.classes_)
105.

106.
     def binarize_labels_and_save(category_labels, color_labels, category_path, color_path):
107.
     category_lb = LabelBinarizer()
108.
     color_lb = LabelBinarizer()
109.
     category_labels = category_lb.fit_transform(category_labels)
110.
     color_labels = color_lb.fit_transform(color_labels)
111.

112.
     # loop over each of the possible class labels and show them
113.
     for (i, label) in enumerate(category_lb.classes_):
114.
     print("category {}. {}".format(i + 1, label))
115.

116.
     for (i, label) in enumerate(color_lb.classes_):
117.
     print("color {}. {}".format(i + 1, label))
118.

119.
     with open(category_path, "wb") as f:
120.
     f.write(pickle.dumps(category_lb))
121.

122.
     with open(color_path, "wb") as f:
123.
     f.write(pickle.dumps(color_lb))
124.
     return category_labels, color_labels, len(category_lb.classes_), len(color_lb.classes_)
125.

126.
     # model_type='SimpleNet' 'SmallerInceptionNet'
127.
     def train_model(datas, labels, classes, finalAct='sigmoid', model_type='SimpleNet'):
128.
     EPOCHS = 20
129.
     INIT_LR = 1e-3
130.
     BATCH_SIZE = 32
131.
     INPUT_SHAPE = (96, 96, 3)
132.
     (trainX, testX, trainY, testY) = train_test_split(datas, labels, test_size=0.2, random_state=42)
133.
     if model_type == 'SimpleNet':
134.
     simpleNet = SimpleNet(INPUT_SHAPE, classes, finalAct)
135.
     model = simpleNet.build_model()
136.
     else:
137.
     smallerInceptionNet = SmallerInceptionNet()
138.
     model = smallerInceptionNet.build_model(INPUT_SHAPE, classes, finalAct)
139.

140.
     opt = Adam(lr=INIT_LR, decay=INIT_LR / EPOCHS)
141.
     model.compile(loss="binary_crossentropy", optimizer=opt, metrics=["accuracy"])
142.

143.
     history = model.fit(trainX, trainY, batch_size=BATCH_SIZE,
144.
     epochs=EPOCHS, verbose=1,
145.
     validation_data=(testX,testY))
146.

147.
     model.save('trained_mode/' + '{}.h5'.format(model_type))
148.

149.
     def train_fashionnet_model(datas, category_labels, color_labels, category_classes, color_classes, finalAct='softmaxt'):
150.
     EPOCHS = 30
151.
     INIT_LR = 1e-3
152.
     BATCH_SIZE = 32
153.
     INPUT_SHAPE = (96, 96, 3)
154.
     (trainX, testX, trainCategoryY, testCategoryY, trainColorY, testColorY) = train_test_split(datas, category_labels, color_labels, test_size=0.2, random_state=42)
155.

156.
     fashionNet = FashionNet(INPUT_SHAPE, category_classes=category_classes,
157.
     color_classes=color_classes, finalAct=finalAct)
158.
     model = fashionNet.build_model()
159.
     losses = { 'category_output':'categorical_crossentropy', 'color_output':'categorical_crossentropy' }
160.
     loss_weights = {'category_output':1.0, 'color_output':1.0}
161.

162.
     opt = Adam(lr=INIT_LR, decay=INIT_LR / EPOCHS)
163.
     model.compile(optimizer=opt,loss=losses, loss_weights=loss_weights, metrics=["accuracy"])
164.

165.
     history = model.fit(trainX, {'category_output': trainCategoryY, 'color_output':trainColorY},
166.
     batch_size=BATCH_SIZE, epochs=EPOCHS,
167.
     verbose=1,
168.
     validation_data=(testX, {'category_output': testCategoryY, 'color_output':testColorY}))
169.

170.
     model.save('trained_mode/' + '{}.h5'.format('FashionNet'))
171.

172.
     plot_fashionnet_loss_acc(history, EPOCHS)
173.

174.
     def plot_loss_acc(history, EPOCHS):
175.
     plt.style.use("ggplot")
176.
     plt.figure()
177.
     N = EPOCHS
178.
     plt.plot(np.arange(0, N), history.history["loss"], label="train_loss")
179.
     plt.plot(np.arange(0, N), history.history["val_loss"], label="val_loss")
180.
     plt.plot(np.arange(0, N), history.history["acc"], label="train_acc")
181.
     plt.plot(np.arange(0, N), history.history["val_acc"], label="val_acc")
182.
     plt.title("Training Loss and Accuracy")
183.
     plt.xlabel("Epoch #")
184.
     plt.ylabel("Loss/Accuracy")
185.
     plt.legend(loc="upper left")
186.
     plt.savefig('plot_loss_acc.png')
187.

188.
     def plot_fashionnet_loss_acc(history, EPOCHS):
189.
     loss_names = ['loss', 'category_output_loss', 'color_output_loss']
190.
     plt.style.use("ggplot")
191.
     (fig, ax) = plt.subplots(3, 1, figsize=(13, 13))
192.

193.
     for (i, l) in enumerate(loss_names):
194.
     title = 'Loss for {}'.format(l) if l != 'loss' else 'Total loss'
195.
     ax[i].set_title(title)
196.
     ax[i].set_xlabel('Epoch #')
197.
     ax[i].set_ylabel('Loss')
198.
     ax[i].plot(np.arange(0, EPOCHS), history.history[l], label=l)
199.
     ax[i].plot(np.arange(0, EPOCHS), history.history["val_"+l], label="val_"+l)
200.
     ax[i].legend()
201.
     plt.savefig('plot_fashionnet_losses.png')
202.
     plt.close()
203.
     '''
204.
     accuray_names = ['category_output_acc', 'color_output_acc']
205.
     plt.style.use("ggplot")
206.
     (fig, ax) = plt.subplots(2, 1, figsize=(8, 8))
207.
     for (i, l) in enumerate(accuray_names):
208.
     title = 'Accuray for {}'.format(l)
209.
     ax[i].set_title(title)
210.
     ax[i].set_xlabel('Epoch #')
211.
     ax[i].set_ylabel('Accuray')
212.
     ax[i].plot(np.arange(0, EPOCHS), history.history[l], label=l)
213.
     ax[i].plot(np.arange(0, EPOCHS), history.history["val_"+l], label="val_"+l)
214.
     ax[i].legend()
215.
     plt.savefig('plot_fashionnet_accs.png')
216.
     plt.close()
217.
     '''
218.

219.
     def main():
220.
     data_dir = './dataset'
221.
     img_size = (96, 96)
222.
     label_dir = './labels'
223.
     if not os.path.exists(label_dir):
224.
     os.mkdir(label_dir)
225.

226.
     '''
227.
     datas, labels = load_data(data_dir, img_size)
228.
     labels, classes= binarize_multilabels_and_save(labels, os.path.join(label_dir, 'multi-label.pickle'))
229.
     train_model(datas, labels, classes, finalAct='sigmoid', model_type='SimpleNet')
230.

231.
     '''
232.
     datas, category_labels, color_labels = load_data_multilabels(data_dir, img_size)
233.
     category_path = os.path.join(label_dir, 'category.pickle')
234.
     color_path = os.path.join(label_dir, 'color.pickle')
235.
     category_labels, color_labels, category_classes, color_classes = binarize_labels_and_save(category_labels, color_labels, category_path, color_path)
236.
     train_fashionnet_model(datas, category_labels, color_labels, category_classes, color_classes, finalAct='softmax')
237.

238.
     if __name__ == '__main__':
239.
     main()

4、测试部分代码

1.
   # import the necessary packages
2.
   from keras.preprocessing.image import img_to_array
3.
   from keras.models import load_model
4.
   import numpy as np
5.
   import argparse
6.
   import imutils
7.
   import pickle
8.
   import cv2
9.
   import os
10.
    import tensorflow as tf
11.

12.
    # load the image
13.
    # model_type = None, FashionNnet
14.
    def load_image(img_path, model_type=None):
15.
    image = cv2.imread(img_path)
16.
    output = imutils.resize(image, width=400)
17.
    if model_type == 'FashionNnet':
18.
    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
19.
    # pre-process the image for classification
20.
    image = cv2.resize(image, (96, 96))
21.
    image = image.astype("float") / 255.0
22.
    image = img_to_array(image)
23.
    image = np.expand_dims(image, axis=0)
24.
    return image, output
25.

26.
    def load_trained_model(img, model_path, labelbin_path):
27.
    label_lb = pickle.loads(open(labelbin_path, "rb").read())
28.
    model = load_model(model_path)
29.
    proba = model.predict(img)[0]
30.

31.
    idxs = np.argsort(proba)[::-1][:2]
32.
    label_1 = label_lb.classes_[idxs[0]]
33.
    label_2 = label_lb.classes_[idxs[1]]
34.

35.
    proba_1 = proba[idxs[0]]
36.
    proba_2 = proba[idxs[1]]
37.

38.
    result = (label_1, proba_1, label_2, proba_2)
39.
    return result
40.

41.

42.

43.
    # load the trained convolutional neural network
44.
    def load_trained_fashionnet_model(img, model_path, categorybin_path, colorbin_path):
45.
    category_lb = pickle.loads(open(categorybin_path, "rb").read())
46.
    color_lb = pickle.loads(open(colorbin_path, "rb").read())
47.

48.
    model = load_model(model_path, custom_objects={'tf':tf})
49.
    (category_proba, color_proba) = model.predict(img)
50.

51.
    category_idx = category_proba[0].argmax()
52.
    color_idx = color_proba[0].argmax()
53.
    category_label = category_lb.classes_[category_idx]
54.
    color_label = color_lb.classes_[color_idx]
55.

56.
    category_proba = category_proba[0][category_idx]
57.
    color_proba = color_proba[0][color_idx]
58.
    result = (category_label, category_proba, color_label, color_proba)
59.
    return result
60.

61.
    def show_result(img, result):
62.
    (label_1, proba_1, label_2, proba_2) = result
63.
    text1 = "{}: {:.2f}%".format(label_1, proba_1*100)
64.
    text2 = "{}: {:.2f}%".format(label_2, proba_2*100)
65.

66.
    cv2.putText(img, text1, (10, 25),
67.
    cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 0), 2)
68.
    cv2.putText(img, text2, (10, 55),
69.
    cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 0), 2)
70.

71.
    # show the output image
72.
    cv2.imshow("Output", img)
73.
    cv2.waitKey(2000)
74.
    cv2.destroyAllWindows()
75.

76.
    def show_fashionnet_result(img, result):
77.
    (category_label, category_proba, color_label, color_proba) = result
78.
    category_text = "category: {}: {:.2f}%".format(category_label, category_proba*100)
79.
    color_text = "color: {}: {:.2f}%".format(color_label, color_proba*100)
80.

81.
    cv2.putText(img, category_text, (10, 25),
82.
    cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 0), 2)
83.
    cv2.putText(img, color_text, (10, 55),
84.
    cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 0), 2)
85.

86.
    # show the output image
87.
    cv2.imshow("Output", img)
88.
    cv2.waitKey(2000)
89.
    cv2.destroyAllWindows()
90.

91.

92.
    if __name__=='__main__':
93.
    test_dir = './examples'
94.
    #model_type = 'FashionNnet'
95.
    model_type = None
96.
    for img in os.listdir(test_dir):
97.
    img_path = os.path.join(test_dir, img)
98.
    if model_type == None:
99.
    image,output = load_image(img_path)
100.
     model_path = 'trained_mode/SimpleNet.h5'
101.
     labelbin_path = './labels/multi-label.pickle'
102.
     result = load_trained_model(image, model_path, labelbin_path)
103.
     show_result(output, result)
104.
     elif model_type == 'FashionNnet':
105.
     image, output = load_image(img_path, model_type)
106.
     model_path = 'trained_mode/FashionNet.h5'
107.
     categorybin_path = './labels/category.pickle'
108.
     colorbin_path = './labels/color.pickle'
109.

110.
     result = load_trained_fashionnet_model(image, model_path, categorybin_path, colorbin_path)
111.
     show_fashionnet_result(output, result)
112.


5、数据和详细完整代码

代码地址：https://github.com/zhangwei147258/fashion_mutil_label_classifier_keras

数据地址：https://pan.baidu.com/s/11LoY2H5shADwiQwPuhB6ng 提取码：pg7d
