A couple weeks ago, we discussed how to perform multi-label classification using Keras and deep learning.
Today, we are going to discuss a more advanced technique called multi-output classification.
So, what’s the difference between the two? And how are you supposed to keep track of all these terms?
While it can be a bit confusing, especially if you are new to studying deep learning, this is how I keep them straight:
In multi-label classification, your network has only one set of fully-connected layers (i.e., “heads”) at the end of the network responsible for classification.
But in multi-output classification your network branches at least twice (sometimes more), creating multiple sets of fully-connected heads at the end of the network — your network can then predict a set of class labels for each head, making it possible to learn disjoint label combinations.
You can even combine multi-label classification with multi-output classification so that each fully-connected head can predict multiple outputs!
If this is starting to make your head spin, no worries — I’ve designed today’s tutorial to guide you through multiple output classification with Keras. It’s actually quite easier than it sounds.
That said, this is a more advanced deep learning technique we’re covering today so if you have not already read my first post on Multi-label classification with Keras make sure you do that now.
From there, you’ll be prepared to train your network with multiple loss functions and obtain multiple outputs from the network.
To learn how to use multiple outputs and multiple losses with TensorFlow and Keras, just keep reading!
2020-06-12 Update: This blog post is now TensorFlow 2+ compatible!
Figure 1: Using Keras we can perform multi-output classification where multiple sets of fully-connected heads make it possible to learn disjoint label combinations. This animation demonstrates several multi-output classification results.
In today’s blog post, we are going to learn how to utilize:
Multiple loss functions
Multiple outputs
…using the TensorFlow/Keras deep learning library.
As mentioned in the introduction to this tutorial, there is a difference between multi-label and multi-output prediction.
With multi-label classification, we utilize one fully-connected head that can predict multiple class labels.
But with multi-output classification, we have at least two fully-connected heads — each head is responsible for performing a specific classification task.
We can even combine multi-output classification with multi-label classification — in this scenario, each multi-output head would be responsible for computing multiple labels as well!
Your eyes might be starting to gloss over or your might be feeling the first pangs of a headache, so instead of continuing this discussion of multi-output vs. multi-label classification let’s dive into our project. I believe the code presented in this post will help solidify the concept for you.
We’ll start with a review of the dataset we’ll be using to build our multi-output Keras classifier.
From there we’ll implement and train our Keras architecture, FashionNet, which will be used to classify clothing/fashion items using two separate forks in the architecture:
One fork is responsible for classifying the clothing type of a given input image (ex., shirt, dress, jeans, shoes, etc.).
And the second fork is responsible for classifying the color of the clothing (black, red, blue, etc.).
Finally, we’ll use our trained network to classify example images and obtain the multi-output classifications.
Let’s go ahead and get started!
The multi-output deep learning dataset
Figure 2: Our multi-output classification dataset was created using the technique discussed in this post. Notice that our dataset doesn’t contain red/blue shoes or black dresses/shirts. Our multi-output classification with Keras method discussed in this blog post will still be able to make correct predictions for these combinations.
The dataset we’ll be using in today’s Keras multi-output classification tutorial is based on the one from our previous post on multi-label classification with one exception — I’ve added a folder of 358 “black shoes” images.
In total, our dataset consists of 2,525 images across seven color + category combinations, including:
The entire process of downloading the images and manually removing irrelevant images for each of the seven combinations took approximately 30 minutes. When building your own deep learning image datasets, make sure you follow the tutorial linked above — it will give you a huge jumpstart on building your own datasets.
Our goal today is nearly the same as last time — to predict both the color and clothing type…
…with the added twist of being able to predict the clothing type + color of images our network was not trained on.
For example, given the following image of a “black dress” (again, which our network will not be trained on):
Figure 3: While images of “black dresses” are not included in today’s dataset, we’re still going to attempt to correctly classify them using multi-output classification with Keras and deep learning.
Our goal will be to correctly predict both “black” + “dress” for this image.
Configuring your development environment
To configure your system for this tutorial, I recommend following either of these tutorials:
Above you can find our project structure, but before we move on, let’s first review the contents.
There are 3 notable Python files:
pyimagesearch/fashionnet.py
: Our multi-output classification network file contains the FashionNet architecture class consisting of three methods:
build_category_branch
,
build_color_branch
, and
build
. We’ll review these methods in detail in the next section.
train.py
: This script will train the
FashionNet
model and generate all of the files in the output folder in the process.
classify.py
: This script loads our trained network and classifies example images using multi-output classification.
We also have 4 top-level directories:
dataset/
: Our fashion dataset which was scraped from Bing Image Search using their API. We introduced the dataset in the previous section. To create your own dataset the same way I did, see How to (quickly) build a deep learning image dataset.
examples/
: We have a handful of example images which we’ll use in conjunction with our
classify.py
script in the last section of this blog post.
output/
: Our
train.py
script generates a handful of output files:
fashion.model
: Our serialized Keras model.
category_lb.pickle
: A serialized
LabelBinarizer
object for the clothing categories is generated by scikit-learn. This file can be loaded (and labels recalled) by our
classify.py
script.
color_lb.pickle
: A
LabelBinarizer
object for colors.

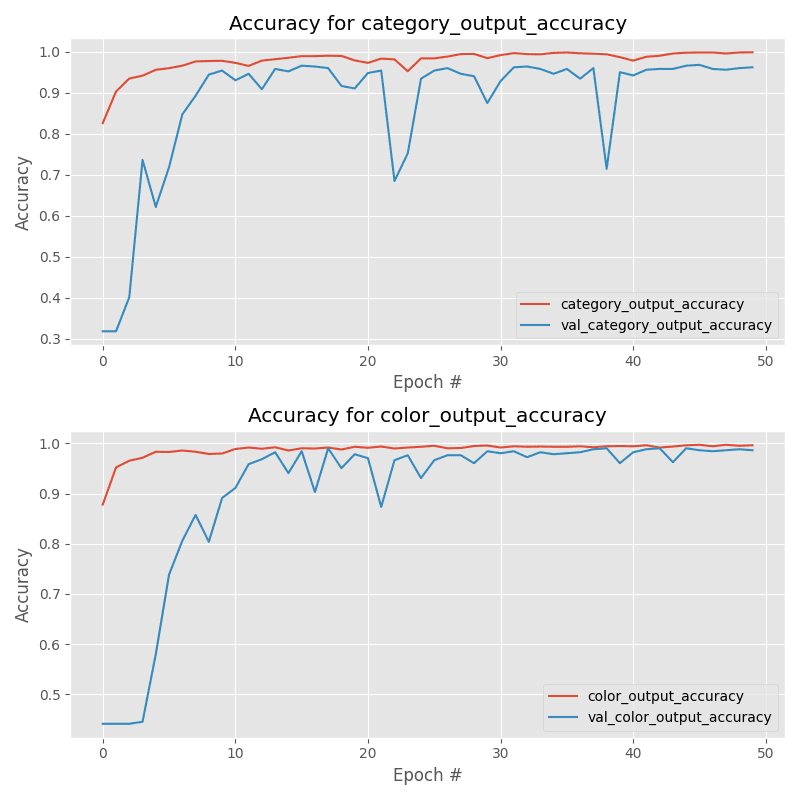

: The accuracies training plot image.

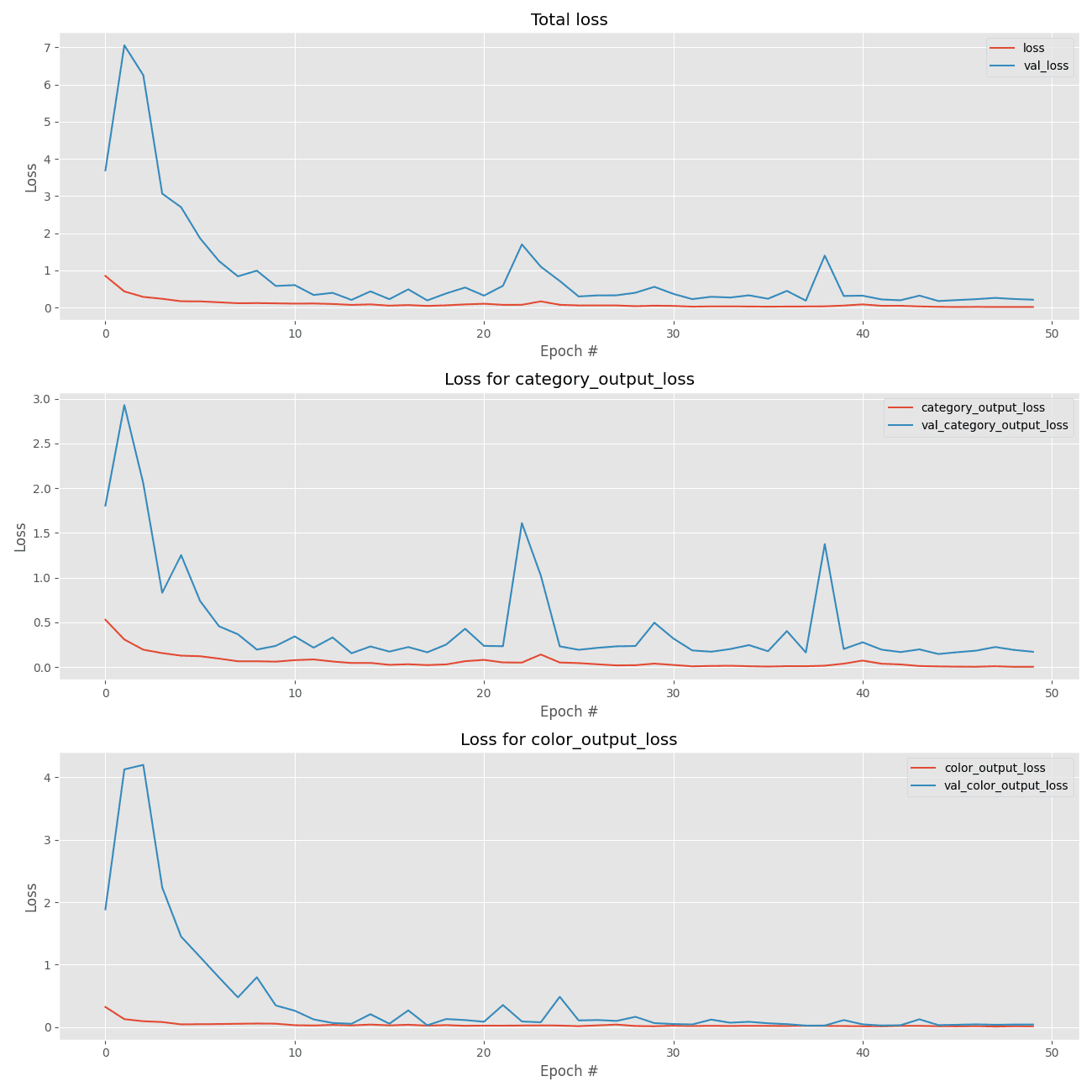

: The losses training plot image.
pyimagesearch/
: This is a Python module containing the
FashionNet
class.
A quick review of our multi-output Keras architecture
To perform multi-output prediction with Keras we will be implementing a special network architecture (which I created for the purpose of this blog post) called FashionNet.
The FashionNet architecture contains two special components, including:
A branch early in the network that splits the network into two “sub-networks” — one responsible for clothing type classification and the other for color classification.
Two (disjoint) fully-connected heads at the end of the network, each in charge of its respective classification duty.
Before we start implementing FashionNet, let’s visualize each of these components, the first being the branching:
Figure 4: The top of our multi-output classification network coded in Keras. The clothing category branch can be seen on the left and the color branch on the right. Each branch has a fully-connected head.
In this network architecture diagram, you can see that our network accepts a
96 x 96 x 3
input image.
We then immediately create two branches:
The branch on the left is responsible for classifying the clothing category.
The branch on the right handles classifying the color.
Each branch performs its respective set of convolution, activation, batch normalization, pooling, and dropout operations until we reach the final outputs:
Figure 5: Our deep learning Keras multi-output classification network makes it possible to learn disjoint label combinations.
Notice how these sets of fully-connected (FC) heads look like the FC layers from other architectures we’ve examined on this blog — but now there are two of them, each of them responsible for its given classification task.
The branch on the right-hand side of the network is significantly shallower (not as deep) as the left branch. Predicting color is far easier than predicting clothing category and thus the color branch is shallow in comparison.
To see how we can implement such an architecture, let’s move on to our next section.
Implementing our “FashionNet” architecture
Figure 6: The Keras deep learning library has all of the capability necessary to perform multi-output classification.
Since training a network with multiple outputs using multiple loss functions is more of an advanced technique, I’ll be assuming you understand the fundamentals of CNNs and instead focus on the elements that make multi-output/multi-loss training possible.
If you’re new to the world of deep learning and image classification you should consider working through my book, Deep Learning for Computer Vision with Python, to help you get up to speed.
Ensure you’ve downloaded the files and data from the “Downloads” section before proceeding.
Once you have the downloads in hand, let’s open up
# utilize a lambda layer to convert the 3 channel input to a
# grayscale representation
x = Lambda(lambda c: tf.image.rgb_to_grayscale(c))(inputs)
# CONV => RELU => POOL
x = Conv2D(32, (3, 3), padding="same")(x)
x = Activation("relu")(x)
x = BatchNormalization(axis=chanDim)(x)
x = MaxPooling2D(pool_size=(3, 3))(x)
x = Dropout(0.25)(x)
The
build_category_branch
function is defined on Lines 16 and 17 with three notable parameters:
inputs
: The input volume to our category branch sub-network.
numCategories
: The number of categories such as “dress”, “shoes”, “jeans”, “shirt”, etc.
finalAct
: The final activation layer type with the default being a softmax classifier. If you were performing both multi-output and multi-label classification you would want to change this activation to a sigmoid.
Pay close attention to Line 20 where we use a
Lambda
layer to convert our image from RGB to grayscale.
Why do this?
Well, a dress is a dress regardless of whether it’s red, blue, green, black, or purple, right?
Thus, we decide to throw away any color information and instead focus on the actual structural components in the image, ensuring our network does not learn to jointly associate a particular color with a clothing type.
Note: Lambdas work differently in Python 3.5 and Python 3.6. I trained this model using Python 3.5 so if you just run the
classify.py
script to test the model with example images with Python 3.6 you may encounter difficulties. If you run into an error related to the Lambda layer, I suggest you either (a) try Python 3.5 or (b) train and classify on Python 3.6. No changes to the code are necessary.
We then proceed to build our
CONV => RELU => POOL
block with dropout on Lines 23-27. Notice that we are using TensorFlow/Keras’ functional API; we need the functional API to create our branched network structure.
Our first
CONV
layer has
32
filters with a
3 x 3
kernel and
RELU
activation (Rectified Linear Unit). We apply batch normalization, max pooling, and 25% dropout.
Dropout is the process of randomly disconnecting nodes from the current layer to the next layer. This process of random disconnects naturally helps the network to reduce overfitting as no one single node in the layer will be responsible for predicting a certain class, object, edge, or corner.
. We distinguish the number of activations in the final layer with
numColors
(different from
numCategories
).
This time, we won’t apply a
Lambda
grayscale conversion layer because we are actually concerned about color in this area of the network. If we converted to grayscale we would lose all of our color information!
This branch of the network is significantly more shallow than the clothing category branch because the task at hand is much simpler. All we’re asking our sub-network to accomplish is to classify color — the sub-network does not have to be as deep.
Just like our category branch, we have a second fully connected head. Let’s build the
# create the model using our input (the batch of images) and
# two separate outputs -- one for the clothing category
# branch and another for the color branch, respectively
model = Model(
inputs=inputs,
outputs=[categoryBranch, colorBranch],
name="fashionnet")
# return the constructed network architecture
return model
Our
build
function is defined on Line 100 and has 5 self-explanatory parameters.
The
build
function makes an assumption that we’re using TensorFlow and channels last ordering. This is made clear on Line 105 where our
inputShape
tuple is explicitly ordered
(height, width, 3)
, where the 3 represents the RGB channels.
If you would like to use a backend other than TensorFlow you’ll need to modify the code to: (1) correctly the proper channel ordering for your backend and (2) implement a custom layer to handle the RGB to grayscale conversion.
From there, we define the two branches of the network (Lines 110-113) and then put them together in a
Model
(Lines 118-121).
The key takeaway is that our branches have one common input, but two different outputs (the clothing type and color classifications).
Implementing the multi-output and multi-loss training script
We’ll see how to run the training script soon. For now, just know that
--dataset
is the input file path to our dataset and
--model
,
--categorybin
,
--colorbin
are all three output file paths.
Optionally, you may specify a base filename for the generated accuracy/loss plots using the
--plot
argument. I’ll point out these command line arguments again when we encounter them in the script. If Lines 21-32 look greek to you, please see my argparse + command line arguments blog post.
Now, let’s establish four important training variables:
# initialize the number of epochs to train for, initial learning rate,
# batch size, and image dimensions
EPOCHS = 50
INIT_LR = 1e-3
BS = 32
IMAGE_DIMS = (96, 96, 3)
We’re setting the following variables on Lines 36-39:
EPOCHS
: The number of epochs is set to
50
. Through experimentation I found that
50
epochs yields a model that has low loss and has not overfitted to the training set (or not overfitted as best as we can).
INIT_LR
: Our initial learning rate is set to
0.001
. The learning rate controls the “step” we make along the gradient. Smaller values indicate smaller steps and larger values indicate bigger steps. We’ll see soon that we’re going to use the Adam optimizer while progressively reducing the learning rate over time.
BS
: We’ll be training our network in batch sizes of
32
.
IMAGE_DIMS
: All input images will be resized to
96 x 96
with
3
channels (RGB). We are training with these dimensions and our network architecture input dimensions reflect these as well. When we test our network with example images in a later section, the testing dimensions must match the training dimensions.
Our next step is to grab our image paths and randomly shuffle them. We’ll also initialize lists to hold the images themselves as well as the clothing category and color, respectively:
You can of course organize your directory structure any way you wish (but you will have to modify the code). My two favorite methods include (1) using subdirectories for each label or (2) storing all images in a single directory and then creating a CSV or JSON file to map image filenames to their labels.
Let’s convert the three lists to NumPy arrays, binarize the labels, and partition the data into training and testing splits:
Our last preprocessing step — converting to a NumPy array and scaling raw pixel intensities to
[0, 1]
— can be performed in one swoop on Line 70.
We also convert the
categoryLabels
and
colorLabels
to NumPy arrays while we’re at it (Lines 75 and 76). This is necessary as in our next we’re going to binarize the labels using scikit-learn’s
LabelBinarizer
which we previously imported (Lines 80-83). Since our network has two separate branches, we can use two independent label binarizers — this is different from multi-label classification where we used the
MultiLabelBinarizer
(also from scikit-learn).
Next, we perform a typical 80% training/20% testing split on our dataset (Lines 87-96).
Let’s build the network, define our independent losses, and compile our model:
model. We dissected the parameters when we created the
FashionNet
class and
build
function therein, so be sure to take a look at the values we’re actually providing here.
Next, we need to define two
losses
for each of the fully-connected heads (Lines 101-104).
Defining multiple losses is accomplished with a dictionary using the names of each of the branch activation layers — this is why we named our output layers in the FashionNet implementation! Each loss will use categorical cross-entropy, the standard loss method used when training networks for classification with > 2 classes.
We also define equal
lossWeights
in a separate dictionary (same name keys with equal values) on Line 105. In your particular application, you may wish to weight one loss more heavily than the other.
Now that we’ve instantiated our model and created our
losses
+
lossWeights
dictionaries, let’s initialize the
Adam
optimizer with learning rate decay (Line 109) and
compile
our
model
(Lines 110 and 111).
Our next block simply kicks off the training process:
2020-06-12 Update: Note that for TensorFlow 2.0+ we recommend explicitly setting the
save_format="h5"
(HDF5 format).
Recall back to Lines 87-90 where we split our data into training (
trainX
) and testing (
testX
). On Lines 114-119 we launch the training process while providing the data. Take note on Line 115 where we pass in the labels as a dictionary. The same goes for Lines 116 and 117 where we pass in a 2-tuple for the validation data. Passing in the training and validation labels in this manner is a requirement when performing multi-output classification with Keras. We need to instruct Keras which set of target labels corresponds to which output branch of the network.
Using our command line argument (
args["model"]
), we save the serialized model to disk for future recall.
We’ll also do the same to save our label binarizers as serialized pickle files:
2020-06-12 Update: In order for this plotting snippet to be TensorFlow 2+ compatible the
H.history
dictionary keys are updated to fully spell out “accuracy” sans “acc” (i.e.,
H.history["category_output_accuracy"]
and
H.history["color_output_accuracy"]
). It is semi-confusing that “val” is not spelled out as “validation”; we have to learn to love and live with the API and always remember that it is a work in progress that many developers around the world contribute to.
Our category accuracy and color accuracy plots are best viewed separately, so they are stacked as separate plots in one image.
Training the multi-output/multi-loss Keras model
Be sure to use the “Downloads” section of this blog post to grab the code and dataset.
Don’t forget: I used Python 3.7 to train the network included in the download for this tutorial. As long as you stay consistent (Python 3.5+) you shouldn’t have a problem with the Lambda implementation inconsistency. You can probably even run Python 2.7 (I haven’t tested this).
Open up terminal. Then paste the following command to kick off the training process (if you don’t have a GPU, you’ll want to grab a beer as well):
Below you can find the plots for each of our multiple losses:
Figure 7: Our Keras deep learning multi-output classification training losses are plotted with matplotlib. Our total losses (top), clothing category losses (middle), and color losses (bottom) are plotted independently for analysis.
As well as our multiple accuracies:
Figure 8: FashionNet, a multi-output classification network, is trained with Keras. In order to analyze the training it is best to show the accuracies in separate plots. Clothing category training accuracy plot (top). Color training accuracy plot (bottom).
Preprocessing our image is required before we run inference. In the above block we load the image, resize it for output purposes, and swap color channels (Lines 24-26) so we can use TensorFlow’s RGB to grayscale function in our
Lambda
layer of FashionNet. We then resize the RGB image (recalling
IMAGE_DIMS
from our training script), scale it to [0, 1], convert to a NumPy array, and add a dimension (Lines 29-32) for the batch.
It is critical that the preprocessing steps follow the same actions taken in our training script.
Next, let’s load our serialized model and two label binarizers:
# find indexes of both the category and color outputs with the
# largest probabilities, then determine the corresponding class
# labels
categoryIdx = categoryProba[0].argmax()
colorIdx = colorProba[0].argmax()
categoryLabel = categoryLB.classes_[categoryIdx]
colorLabel = colorLB.classes_[colorIdx]
We perform multi-output classification on Line 43 resulting in a probability for both category and color (
categoryProba
and
colorProba
respectively).
Note: I didn’t include the include code as it was a bit verbose but you can determine the order in which your TensorFlow + Keras model returns multiple outputs by examining the names of the output tensors. See this thread on StackOverflow for more details.
From there, we’ll extract the indices of the highest probabilities for both category and color (Lines 48 and 49).
Using the high probability indices, we can extract the class names (Lines 50 and 51).
That seems a little too easy, doesn’t it? But that’s really all there is to applying multi-output classification using Keras to new input images!
image (Lines 54-61). It will look a little something like this in green text in the top left corner if we encounter a “red dress”:
category: dress (89.04%)
color: red (95.07%)
The same information is printed to the terminal on Lines 64 and 65 after which the
output
image is shown on the screen (Line 68).
Performing multi-output classification with Keras
Now it’s time for the fun part!
In this section, we are going to present our network with five images in the
examples
directory which are not part of the training set.
The kicker is that our network has only been specifically trained to recognize two of the example images categories. These first two images (“black jeans” and “red shirt”) should be especially easy for our network to correctly classify both category and color.
The remaining three images are completely foreign to our model — we didn’t train with “red shoes”, “blue shoes”, or “black dresses” but we’re going to attempt multi-output classification and see what happens.
Let’s begin with “black jeans” — this one should be easy as there were plenty of similar images in the training dataset. Be sure to use the four command line arguments like so:
Figure 9: Deep learning multi-label classification allows us to recognize disjoint label combinations such as clothing type and clothing color. Our network has correctly classified this image as both “jeans” and “black”.
As expected, our network correctly classified the image as both “jeans” and “black”.
Figure 10: This image of a “red shirt” is a test image which is not in our deep learning image dataset. Our Keras multi-output network has; however, seen other red shirts. It easily classifies this image with both labels at 100% confidence.
With 100% confidence for both class labels, our image definitely contains a “red shirt”. Remember, our network has seen other examples of “red shirts” during the training process.
Now let’s step back.
Take a look at our dataset and recall that it has never seen “red shoes” before, but it has seen “red” in the form of “dresses” and “shirts” as well as “shoes” with “black” color.
Is it possible to make the distinction that this unfamiliar test image contains “shoes” that are “red”?
Figure 11: Our deep learning multi-output classification network has never seen the combination of “red” and “shoes” before. During the training process, we did present “shoes” (albeit, “black” ones) and we did present “red” (both “shirts” and “dresses”). Amazingly, our network fires neurons resulting in the correct multi-output labels for this image of “red shoes”. Success!
Bingo!
Looking at the results in the image, we were successful.
We’re off to a good start while presenting unfamiliar multi-output combinations. Our network design + training has paid off and we were able to recognize “red shoes” with high accuracy.
We’re not done yet — let’s present an image containing a “black dress” to our network. Remember, previously this same image did not yield a correct result in our multi-label classification tutorial.
I think we have a great chance at success this time around, so type the following command in your terminal:
Figure 12: While images of “black dresses” are not included in today’s dataset, we’re still able to correctly classify them using multi-output classification with Keras and deep learning.
Check out the class labels on the top-left of the image!
We achieved correct classification in both category and color with both reporting confidence of > 98% accuracy. We’ve accomplished our goal!
For sanity, let’s try one more unfamiliar combination: “blue shoes”. Enter the same command in your terminal, this time changing the
Figure 13: While multi-label classification may fail at unfamiliar label combinations, multi-output classification handles the task gracefully.
The same deal is confirmed — our network was not trained on “blue shoes” images but we were able to correctly classify them by using our two sub-networks along with multi-output and multi-loss classification.
→
