keras提供了VGG19在ImageNet上的预训练权重模型文件，其他可用的模型还有VGG16、Xception、ResNet50、InceptionV3 4个。

VGG19在keras中的定义：

1.
   def VGG19(include_top=True, weights='imagenet',
2.
   input_tensor=None, input_shape=None,
3.
   pooling=None,
4.
   classes=1000)
5.


参数介绍：

include_top: 是否包含最后的3个全连接层

weights： 定义为‘imagenet’，表示加载在imagenet数据库上训练的预训练权重，定义为None则不加载权重，参数随机初始化

1）使用VGG19预训练模型分类图片的例子

1.
   # coding: utf-8
2.
   from keras.applications.vgg19 import VGG19
3.
   from keras.preprocessing import image
4.
   from keras.applications.vgg19 import preprocess_input
5.
   from keras.models import Model
6.
   import numpy as np
7.

8.
   base_model = VGG19(weights='imagenet', include_top=True)
9.
   img_path = 'cat.jpg'
10.
    img = image.load_img(img_path, target_size=(224, 224)) # 加载图像，归一化大小
11.
    x = image.img_to_array(img) # 序列化
12.
    x = np.expand_dims(x, axis=0) # 扩展维度[batch_size,H,W,Channel]
13.
    x = preprocess_input(x) # 预处理，默认mode="caffe"
14.
    """
15.
    def preprocess_input(x, data_format=None, mode='caffe'):
16.
    Preprocesses a tensor or Numpy array encoding a batch of images.
17.

18.
    # Arguments
19.
    x: Input Numpy or symbolic tensor, 3D or 4D.
20.
    data_format: Data format of the image tensor/array.
21.
    mode: One of "caffe", "tf".
22.
    - caffe: will convert the images from RGB to BGR,
23.
    then will zero-center each color channel with
24.
    respect to the ImageNet dataset,
25.
    without scaling.
26.
    - tf: will scale pixels between -1 and 1,
27.
    sample-wise.
28.

29.
    # Returns
30.
    Preprocessed tensor or Numpy array.
31.

32.
    # Raises
33.
    ValueError: In case of unknown `data_format` argument.
34.
    """
35.
    out = base_model.predict(x) # 预测结果，1000维的向量
36.
    print(out.shape) # 预测结果out是一个1000维的向量，代表了预测结果分别属于10000个分类的概率，形状是（1,1000）

2) 使用VGG19预训练模型提取VGG19网络中任意层的输出特征的例子

上个例子可以看到keras对VGG网络的封装异常好，简单几行代码就可以分类图片。keras中VGG预训练参数模型另一个更常用的应用是可以提取VGG网络中任意一层的特征。
以下例子提取的是VGG19网络中第5个卷积层的输出特征（也是第1个全连接层的输入特征）

1.
   # coding: utf-8
2.
   from keras.applications.vgg19 import VGG19
3.
   from keras.preprocessing import image
4.
   from keras.applications.vgg19 import preprocess_input
5.
   from keras.models import Model
6.
   import numpy as np
7.

8.
   base_model = VGG19(weights='imagenet', include_top=False)
9.
   model = Model(inputs=base_model.input, outputs=base_model.get_layer('block5_pool').output)
10.
    img_path = 'cat.jpg'
11.
    img = image.load_img(img_path, target_size=(224, 224))
12.
    x = image.img_to_array(img)
13.
    x = np.expand_dims(x, axis=0)
14.
    x = preprocess_input(x)
15.
    block5_pool_features = model.predict(x)
16.
    print(block5_pool_features.shape) #(1, 7, 7, 512)

也可以设置为加载最后3个全连接层的VGG19网络，就可以获取最后3个全连接层的输出了：

1.
   # coding: utf-8
2.
   from keras.applications.vgg19 import VGG19
3.
   from keras.preprocessing import image
4.
   from keras.applications.vgg19 import preprocess_input
5.
   from keras.models import Model
6.
   import numpy as np
7.
   base_model = VGG19(weights='imagenet', include_top=True)
8.
   model = Model(inputs=base_model.input, outputs=base_model.get_layer('fc2').output)
9.
   img_path = 'cat.jpg'
10.
    img = image.load_img(img_path, target_size=(224, 224))
11.
    x = image.img_to_array(img)
12.
    x = np.expand_dims(x, axis=0)
13.
    x = preprocess_input(x)
14.
    fc2 = model.predict(x)
15.
    print(fc2.shape) #(1, 4096)

加了全连接层，所以base_model.get_layer('fc2') 里参数也可以是 flatten、fc1、fc2和predictions 。

VGG19各个模块在keras中定义的名称可以通过以下代码获得，然后根据名称可以轻松获取该层特征：：

1.
   from keras.applications.vgg19 import VGG19
2.
   from keras.preprocessing import image
3.
   from keras.applications.vgg19 import preprocess_input
4.
   from keras.models import Model
5.
   import numpy as np
6.
   import os
7.
   import tensorflow as tf
8.
   os.environ["CUDA_VISIBLE_DEVICES"] = "0"
9.
   gpu_options = tf.GPUOptions(allow_growth=True)
10.
    sess = tf.Session(config=tf.ConfigProto(gpu_options=gpu_options))
11.
    from keras.utils import plot_model
12.
    from matplotlib import pyplot as plt
13.

14.
    #【0】VGG19模型，加载预训练权重
15.
    base_model = VGG19(weights='imagenet')
16.

17.
    #【1】创建一个新model, 使得它的输出(outputs)是 VGG19 中任意层的输出(output)
18.
    model = Model(inputs=base_model.input, outputs=base_model.get_layer('block4_pool').output)
19.
    print(model.summary()) # 打印模型概况,如下所示
20.

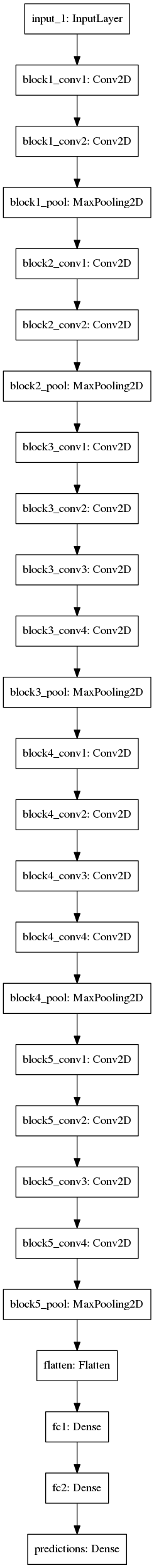

    plot_model(model,to_file = 'a simple convnet.png') # 画出模型结构图，并保存成图片，如下图所示
21.
    """
22.
    _________________________________________________________________
23.
    Layer (type) Output Shape Param #
24.
    =================================================================
25.
    input_1 (InputLayer) (None, 224, 224, 3) 0
26.
    _________________________________________________________________
27.
    block1_conv1 (Conv2D) (None, 224, 224, 64) 1792
28.
    _________________________________________________________________
29.
    block1_conv2 (Conv2D) (None, 224, 224, 64) 36928
30.
    _________________________________________________________________
31.
    block1_pool (MaxPooling2D) (None, 112, 112, 64) 0
32.
    _________________________________________________________________
33.
    block2_conv1 (Conv2D) (None, 112, 112, 128) 73856
34.
    _________________________________________________________________
35.
    block2_conv2 (Conv2D) (None, 112, 112, 128) 147584
36.
    _________________________________________________________________
37.
    block2_pool (MaxPooling2D) (None, 56, 56, 128) 0
38.
    _________________________________________________________________
39.
    block3_conv1 (Conv2D) (None, 56, 56, 256) 295168
40.
    _________________________________________________________________
41.
    block3_conv2 (Conv2D) (None, 56, 56, 256) 590080
42.
    _________________________________________________________________
43.
    block3_conv3 (Conv2D) (None, 56, 56, 256) 590080
44.
    _________________________________________________________________
45.
    block3_conv4 (Conv2D) (None, 56, 56, 256) 590080
46.
    _________________________________________________________________
47.
    block3_pool (MaxPooling2D) (None, 28, 28, 256) 0
48.
    _________________________________________________________________
49.
    block4_conv1 (Conv2D) (None, 28, 28, 512) 1180160
50.
    _________________________________________________________________
51.
    block4_conv2 (Conv2D) (None, 28, 28, 512) 2359808
52.
    _________________________________________________________________
53.
    block4_conv3 (Conv2D) (None, 28, 28, 512) 2359808
54.
    _________________________________________________________________
55.
    block4_conv4 (Conv2D) (None, 28, 28, 512) 2359808
56.
    _________________________________________________________________
57.
    block4_pool (MaxPooling2D) (None, 14, 14, 512) 0
58.
    =================================================================
59.
    Total params: 10,585,152
60.
    Trainable params: 10,585,152
61.
    Non-trainable params: 0
62.
    _________________________________________________________________
63.

64.
    """



3）最终的特征提取代码

1.
   # -*- coding: UTF-8 -*-
2.
   #-------------------------------------------
3.
   #任 务：利用VGG19提取任意中间层特征
4.
   #数 据：网上下载的测试图片‘elephant.jpg’
5.
   #-------------------------------------------
6.

7.
   from keras.applications.vgg19 import VGG19
8.
   from keras.preprocessing import image
9.
   from keras.applications.vgg19 import preprocess_input
10.
    from keras.models import Model
11.
    import numpy as np
12.
    import os
13.
    import tensorflow as tf
14.
    os.environ["CUDA_VISIBLE_DEVICES"] = "6"
15.
    gpu_options = tf.GPUOptions(allow_growth=True)
16.
    sess = tf.Session(config=tf.ConfigProto(gpu_options=gpu_options))
17.
    from keras.utils import plot_model
18.
    from matplotlib import pyplot as plt
19.

20.
    #【0】VGG19模型，加载预训练权重
21.
    base_model = VGG19(weights='imagenet')
22.

23.
    #【1】创建一个新model, 使得它的输出(outputs)是 VGG19 中任意层的输出(output)
24.
    model = Model(inputs=base_model.input, outputs=base_model.get_layer('block4_pool').output)
25.
    print(model.summary()) # 打印模型概况
26.
    plot_model(model,to_file = 'a simple convnet.png') # 画出模型结构图，并保存成图片
27.

28.
    '''
29.
    _________________________________________________________________
30.
    Layer (type) Output Shape Param #
31.
    =================================================================
32.
    input_1 (InputLayer) (None, 224, 224, 3) 0
33.
    _________________________________________________________________
34.
    block1_conv1 (Conv2D) (None, 224, 224, 64) 1792
35.
    _________________________________________________________________
36.
    block1_conv2 (Conv2D) (None, 224, 224, 64) 36928
37.
    _________________________________________________________________
38.
    block1_pool (MaxPooling2D) (None, 112, 112, 64) 0
39.
    _________________________________________________________________
40.
    block2_conv1 (Conv2D) (None, 112, 112, 128) 73856
41.
    _________________________________________________________________
42.
    block2_conv2 (Conv2D) (None, 112, 112, 128) 147584
43.
    _________________________________________________________________
44.
    block2_pool (MaxPooling2D) (None, 56, 56, 128) 0
45.
    _________________________________________________________________
46.
    block3_conv1 (Conv2D) (None, 56, 56, 256) 295168
47.
    _________________________________________________________________
48.
    block3_conv2 (Conv2D) (None, 56, 56, 256) 590080
49.
    _________________________________________________________________
50.
    block3_conv3 (Conv2D) (None, 56, 56, 256) 590080
51.
    _________________________________________________________________
52.
    block3_conv4 (Conv2D) (None, 56, 56, 256) 590080
53.
    _________________________________________________________________
54.
    block3_pool (MaxPooling2D) (None, 28, 28, 256) 0
55.
    _________________________________________________________________
56.
    block4_conv1 (Conv2D) (None, 28, 28, 512) 1180160
57.
    _________________________________________________________________
58.
    block4_conv2 (Conv2D) (None, 28, 28, 512) 2359808
59.
    _________________________________________________________________
60.
    block4_conv3 (Conv2D) (None, 28, 28, 512) 2359808
61.
    _________________________________________________________________
62.
    block4_conv4 (Conv2D) (None, 28, 28, 512) 2359808
63.
    _________________________________________________________________
64.
    block4_pool (MaxPooling2D) (None, 14, 14, 512) 0
65.
    =================================================================
66.
    Total params: 10,585,152
67.
    Trainable params: 10,585,152
68.
    Non-trainable params: 0
69.
    _________________________________________________________________
70.

71.
    '''
72.

73.
    #【2】从网上下载一张图片，保存在当前路径下
74.
    img_path = 'elephant.jpg'
75.
    img = image.load_img(img_path, target_size=(224, 224)) # 加载图片并resize成224x224
76.

77.
    #【3】将图片转化为4d tensor形式
78.
    x = image.img_to_array(img)
79.
    x = np.expand_dims(x, axis=0)
80.

81.
    #【4】数据预处理
82.
    x = preprocess_input(x) #去均值中心化，preprocess_input函数详细功能见注释
83.
    """
84.
    def preprocess_input(x, data_format=None, mode='caffe'):
85.
    Preprocesses a tensor or Numpy array encoding a batch of images.
86.

87.
    # Arguments
88.
    x: Input Numpy or symbolic tensor, 3D or 4D.
89.
    data_format: Data format of the image tensor/array.
90.
    mode: One of "caffe", "tf".
91.
    - caffe: will convert the images from RGB to BGR,
92.
    then will zero-center each color channel with
93.
    respect to the ImageNet dataset,
94.
    without scaling.
95.
    - tf: will scale pixels between -1 and 1,
96.
    sample-wise.
97.

98.
    # Returns
99.
    Preprocessed tensor or Numpy array.
100.

101.
     # Raises
102.
     ValueError: In case of unknown `data_format` argument.
103.
     """
104.
     #【5】提取特征
105.
     block4_pool_features = model.predict(x)
106.
     print(block4_pool_features.shape) #(1, 14, 14, 512)

示例图片：
